Horizontal Miter Bandsaws

Horizontal Miter Bandsaws

Here are some PDF brochures to help you select the exact one that you need:

---

Horizontal Miter Bandsaw Product Line

Our Main Models

12" (305 mm) Semi Automatic Wet Cutting Horizontal Miter Bandsaw

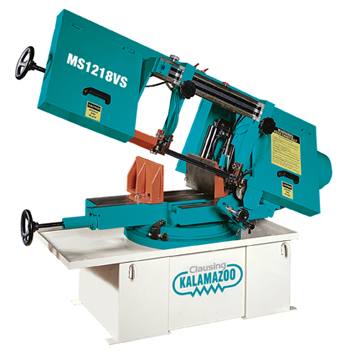

12 inch (305 mm) Semi Automatic Miter Bandsaw

Standard Features: 0° tp 45° Miter cutting, make angle cuts without swinging material to be cut 2 Hp (1.5kw) main drive with magnetic starter and overload protection Variable speed drive 230/460v 60 cycle 3 phase electricals Recirculating coolant system with application through both guides Solid carbide blade guides with rollers Quick position vise Automatic shut-off at end of cut Totally enclosed transmission Blade cleaning brush Cast iron bed 1" (254mm) wide blade Stock stop Easily adjusted head feed with power lift Two (2) year limited warranty Model PDF Brochure

---

13" (330 mm) Semi Automatic Horizontal Miter Bandsaw

Standard Features: Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at end of cut Full stroke machine vise for tight clamping of any material from operator's panel Swivel sawhead allows the operator to accurately pivot head for angle cuts from 0°, for a 90° cut, to 60° Carbide blade guides provide excellent stability for the saw blade Variable blade speed Power chip brush removes chips from the blade extending blade life Integrated coolant system Cast iron moveable guide arms provide rigidity and stability for an accurate cut Flushing hose Adjustable work stop Tool box with tools Manual & parts list Two (2) year limited warranty Model PDF Brochure

---

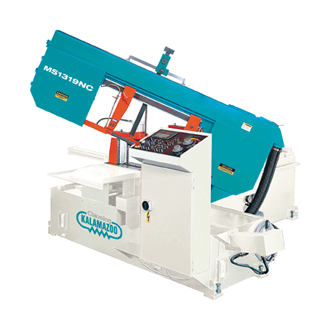

13" (330 mm) Fully Automatic NC Horizontal Miter Bandsaw

Standard Features: The swivel sawhead allows cutting at any angle between 90° (straight cut) and 45° (miter cut) Precision pivot system facilitates easy and accurate adjustment for angle cuts Inverter controlled infinitely variable speed Carbide blade guides with roller bearings Two additional guides to support the blade from the top Automatic hydraulic blade tensioning Power driven blade brushes Integral coolant system Smart NC-100 technology programmable up to 100 different jobs Easy recal and execution of stored parts Automatic shutoff after preset number of cuts or when out of stock 5.7" HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics Automatic kerf loss compensation & computer controlled multiple indexing Precision feed pressure & feed rate Automatic height setting feature Hydraulic front and rear vises Cast iron vises with replaceable hardened wear plates Computer controlled multiple indexing Discharge table with built-in coolant return Blade slippage or breakage detection Additional flushing hose Bi-metal saw blade Built in work light Tool box, leveling pads, and an additional wire brush Operation & parts manual Two (2) year limited warranty Model PDF Brochure

---

16.5" (420mm) Semi-Automatic Hyd Swivel Head Horizontal Miter Bandsaw

Standard Features: The swivel sawhead allows cutting at any angle between 90° (straight cut) and 45° (miter cut) Precision pivot system facilitates easy and accurate adjustment for angle cuts Inverter controlled infinitely variable speed Carbide blade guides with roller bearings Two additional guides to support the blade from the top Automatic hydraulic blade tensioning Power driven blade brushes Integral coolant system Smart NC-100 technology programmable up to 100 different jobs Easy recal and execution of stored parts Automatic shutoff after preset number of cuts or when out of stock 5.7" HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics Automatic kerf loss compensation & computer controlled multiple indexing Precision feed pressure & feed rate Automatic height setting feature Hydraulic front and rear vises Cast iron vises with replaceable hardened wear plates Computer controlled multiple indexing Discharge table with built-in coolant return Blade slippage or breakage detection Additional flushing hose Bi-metal saw blade Built in work light Tool box, leveling pads, and an additional wire brush Operation & parts manual Two (2) year limited warranty Model PDF Brochure

---

19.7" (500mm) Semi-Automatic Hyd Swivel Head Twin Column Horizontal Miter Bandsaw

Standard Features: Swivel sawhead mitering from 90° to 60° Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate 7.5 degree blade cant for longer blade life 45 degree backward swivel with automatic angle lock-in Specially designed gearbox for smooth and powerful cutting Heavy duty inverter blade drive system Carbide blade guides Two additional guide bearings for extra support of the blade Automatic hydraulic blade tensioning device Integral coolant system Synchronized power driven blade brush Independent control station Infinitely variable blade speed control Precision feed pressure & feed rate dual valve system "Last cut" or "keep on" selector switch Work height selector Extremely heavy-duty cast iron machines vises ensuring tight clamping 2 sets of full stroke cylinder vises Shadow light projection for precise length measurement Proximity switch for sensing blade slippage or breakage Electrical and hydraulic safety interlock Conduits protection measure "Alert Orange" safety measure Blade "clip" device for easy blade change Bi-metal saw blade Tool box, leveling pads, and an additional wire brush Operation & parts manual Two (2) year limited warranty Model PDF Brochure

---

26" (660mm) Semi-Automatic Hyd Swivel Head Twin Column Horizontal Miter Bandsaw

Standard Features: Swivel sawhead mitering from 90° to 60° Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate 7.5 degree blade cant for longer blade life 45 degree backward swivel with automatic angle lock-in Specially designed gearbox for smooth and powerful cutting Heavy duty inverter blade drive system Carbide blade guides Two additional guide bearings for extra support of the blade Automatic hydraulic blade tensioning device Integral coolant system Synchronized power driven blade brush Independent control station Infinitely variable blade speed control Precision feed pressure & feed rate dual valve system "Last cut" or "keep on" selector switch Work height selector Extremely heavy-duty cast iron machines vises ensuring tight clamping 2 sets of full stroke cylinder vises Shadow light projection for precise length measurement Proximity switch for sensing blade slippage or breakage Electrical and hydraulic safety interlock Conduits protection measure "Alert Orange" safety measure Blade "clip" device for easy blade change Bi-metal saw blade Tool box, leveling pads, and an additional wire brush Operation & parts manual Two (2) year limited warranty Model PDF Brochure

---

33.5" (850mm) Semi-Automatic Hyd Swivel Head Twin Column Horizontal Miter Bandsaw

Standard Features: Swivel sawhead mitering from 90° to 60° Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate 7.5 degree blade cant for longer blade life 45 degree backward swivel with automatic angle lock-in Specially designed gearbox for smooth and powerful cutting Heavy duty inverter blade drive system Carbide blade guides Two additional guide bearings for extra support of the blade Automatic hydraulic blade tensioning device Integral coolant system Synchronized power driven blade brush Independent control station Infinitely variable blade speed control Precision feed pressure & feed rate dual valve system "Last cut" or "keep on" selector switch Work height selector Extremely heavy-duty cast iron machines vises ensuring tight clamping 2 sets of full stroke cylinder vises Shadow light projection for precise length measurement Proximity switch for sensing blade slippage or breakage Electrical and hydraulic safety interlock Conduits protection measure "Alert Orange" safety measure Blade "clip" device for easy blade change Bi-metal saw blade Tool box, leveling pads, and an additional wire brush Operation & parts manual Two (2) year limited warranty Model PDF Brochure

---
